Challenges when writing gren-format

Gilbert Ramirez
August 2026

A short tour of the problems we ran into building a code formatter for Gren, and what we did about each one. For the long version of the comment story, see Putting the comments back.

TL;DR. We built the formatter on top of the compiler’s own v2 parser, which produces a syntax tree with no comments in it, and some punctuation tokens elided. Many difficulties arise from that: putting comments back where they belong, doing it in a way that gives the same answer on the second run, and testing a tool whose only spec is “it looks right”. The one idea we would carry to the next project: decide anything position-dependent once, record the decision as a value, and make it a compile error for later stages to look at the source positions again.

Table of contents

1. We borrowed the compiler’s parser

gren-format has no parser of its own. It calls the Gren compiler’s v2 parser, the same code that compiles the program. The reason is simple: Gren is a language that is still changing, and a formatter with its own parser will eventually disagree with the compiler about what is valid. Ours can’t. It accepts exactly what the compiler accepts, always.

The price is what a compiler’s parser throws away, because a compiler doesn’t need it. Two things are gone by the time we see the tree.

Comments. Ordinary -- and {- -} comments are not in the syntax tree at all. They arrive separately, as a flat list, each one tagged with nothing but a start and end (row, column). (Doc comments, {-| -}, are the exception; the compiler keeps those for documentation, and they arrive on the declaration they belong to.)

Punctuation. =, :, ,, |, ->, then, in and friends have no node and no position. Only operators and brackets survive. That matters more than it sounds: these two lines

x {- c -} = y
x = {- c -} y

reach the formatter as the same three facts: where x ends, where the comment is, where y starts. The formatter doesn’t know where the = is at all. We can’t tell them apart, and we refuse to guess by looking at whitespace widths (formatting must not depend on your spacing). The only way to ensure idempotent formatting is to choose one side of the = to place such a comment. We picked a rule, “the comment lands after the separator”, and recorded it as one of the roles in section 3.

Had the compiler kept comments, we’d have taken them gladly. It didn’t, so sections 3 and 4 are the result.

2. No page width: your line breaks are the layout

Many formatters have a column limit and a decision: try to fit the code in 80 columns, break the least bad thing when it doesn’t. gren-format has neither. The whole layout policy is this:

-- you write:                     -- gren-format writes:
f =                               f =
    combine a b                       combine a
        c                                 b
                                          c

That’s easy to explain to a user and easy to predict, which is the point. It was also the source of a whole class of bugs, because the author’s row numbers are sitting right there on every node and every layout rule is tempted to peek. “Did the author break this call across rows?” is a legitimate question. “Is the thing before me on the same row?” asked deep inside the renderer, after we’ve already moved things, is not, and it took us a long time to see the difference. Section 3 is about making that second kind of question impossible.

3. Putting the comments back

Here’s the formatter’s fundamental problem: comment placement is decided from source positions, and formatting is the thing that invalidates source positions.

Take this Gren source code:

module S exposing (sizes)


sizes =
    [ 1 -- one
    , 2
    ]

The formatter receives two things. The first is the syntax tree, which is the tree for sizes = [1, 2] with a source range on every node (@row:col-row:col) and no comment anywhere in it:

module  name='S'  @1:8-1:9, effects='none'
    ├── exports
    │   └── [0]: lower  name='sizes'  @1:20-1:25
    └── values
        └── [0]  @4:1-7:6
            └── value  name='sizes'  @4:1-4:6
                └── body: array  @5:5-7:6
                    └── items
                        ├── [0]: number  @5:7-5:8
                        │   └── value: int  value=1
                        └── [1]: number  @6:7-6:8
                            └── value: int  value=2

The second is the parse context, a flat list of the comments, each with nothing but a start and end position:

{ "comments": [ { "type": "line", "value": " one",
                  "start": { "row": 5, "col": 9 },
                  "end":   { "row": 5, "col": 15 } } ] }

The array spans rows 5 to 7; the comment is on row 5, column 9. The comment doesn’t know it’s inside the array; the array doesn’t know the comment exists. The only thing connecting them is a (row, column) pair across two data structures, and we work out that the comment trails the 1 by comparing numbers: its row is the first item’s row, and its column is past the item’s end. Then we lay the file out again, the numbers change, and if anything downstream compares them a second time it can get a different answer.

For most of the project’s life, that is exactly what happened. Comment placement was re-derived at each point of use, in at least eight places in the rendering code, each one doing its own row arithmetic. We replaced that with two moves.

Decide once, as a role. Every comment’s placement is now decided exactly once, early, while every position in the tree is still the author’s, and the answer is stored on the comment as one of seven values:

type CommentRole
    = TrailsPrevious   -- glue onto the previous sibling's last line
    | LeadsLine        -- own line, at the current indent
    | LeadsNext        -- belongs to the thing after an unrecorded separator
    | TrailsHead       -- glue onto the container's head (a record update's base)
    | RidesInline      -- sits mid-line without breaking it  (f {- k -} x)
    | LeadsInline      -- glued to the front of a declaration ({- c -} import Qux)
    | Standalone       -- a detached top-level comment on its own

A role is a direction, not a coordinate. “Glue onto the previous sibling’s last line” is something a renderer can do wherever that line ends up. Every comment gets a role; there is no “unknown role”.

We call this a position barrier. It is a barrier in our formatter’s pipeline. Before the barrier, code can read the source positions. After the barrier, those source positions are gone, completely inaccessible.

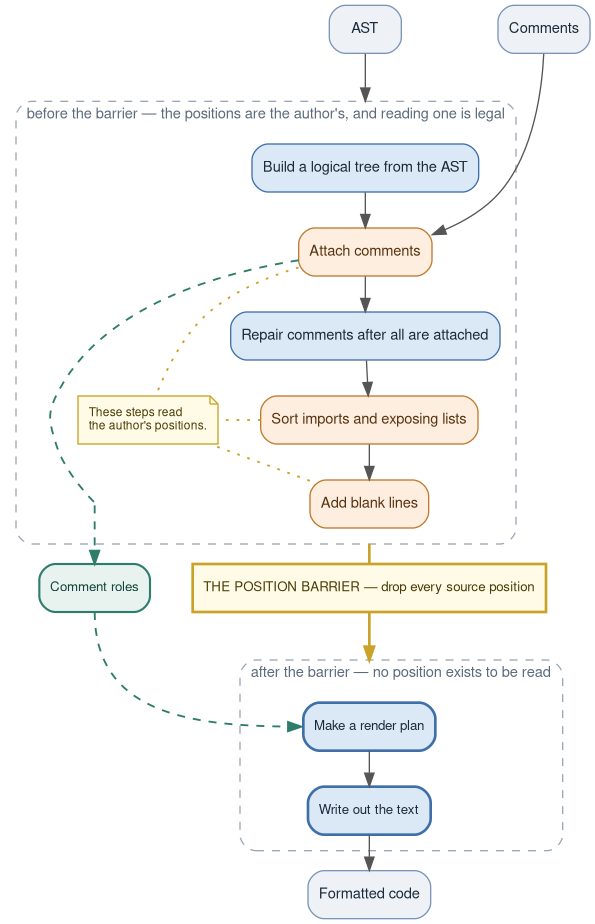

The pipeline, and where the position barrier falls

Make the barrier a type. The renderer does not receive the tree with the positions on it. It receives a copy, RenderNode, built by a function called lower that strips every position field and every Located payload off. A handful of questions genuinely need the author’s rows (“did the author break this signature at an arrow?”), so lower answers those once, as four booleans, and passes the answers along. The evidence stays behind.

So a row read in the renderer is now a compile error. Before that we used a script that grepped the render modules for a list of accessor names. It worked fine but would break any time someone later spelled an accessor differently, and it went quietly stale when the list of names did. “Don’t read positions here” as a comment in a file is advice. “It doesn’t compile” is a property of the system.

The position barrier doesn’t prove anything is stable. What it does is shrink the surface area of the question. With nothing downstream reading positions, two runs can disagree only if the role classifier answers differently the second time, and that’s one function, small enough to argue about in full. Section 4 is that argument.

4. Idempotency

There are three distinct requirements when formatting these re-attached comments:

  1. Every comment survives.
  2. Every comment ends up beside the code it was written beside.
  3. Formatting an already-formatted file changes nothing. (idempotency)

You can have 1 and 2 and still fail 3, and we did, often. Here’s an example from an old bug of ours:

you wrote:            first format:         second format:

v =                   v =                   v =
    foo bar -- c          foo bar               foo bar
                          -- c              -- c

The first run read the comment’s row, saw it on the body’s last row, and decided “trails the body”. But the code that turns “trails” into output couldn’t find a line to glue onto for a two-token body, so it dropped the comment onto its own line. The second run read that file. Now the comment is on the row after the declaration, and a comment there is detached, so it goes to column 1. Same rules, same comment, different row, different answer. The file settles after two runs instead of one.

The rule we ended up writing the classifier to is: a role must re-derive to itself. If a comment’s role was decided from row N, the comment has to render on row N, so that the second run asks the same question of the same row. When the output fails to honour that, the fix goes to the output, not the rule.

That handles the case where the comment moves. The nastier case is when the code moves. The Gren formatter rewrites the source in a few small ways: it sorts exposing lists and runs of imports, and it can add or drop a port keyword. Sorting imports moves the import a comment was anchored to. When we got that bookkeeping wrong, the comment stayed put while its anchor sailed away, and the second run classified it differently.

Here’s one of the bugs we hit. The comment is written inside an import, which is a place the tree has no room for a comment, so the formatter has to promote it to a line of its own. The goal was to sort the Alpha, Mu, and Zeta import statements.

you wrote:            first format:         second format:

import Zeta           import Zeta           {- k -}
import {- k -} Mu     {- k -}               import Alpha
import Alpha          import Alpha          import Mu
                      import Mu             import Zeta

The first (buggy) run promotes the comment onto its own line and then sorts, but its bookkeeping leaves the comment’s row looking like the end of the import run, so only Mu and Alpha are sorted and Zeta stays put. The second run reads that file, where the comment genuinely is on a line of its own above import Alpha. A comment does not end an import run, so now all three sort together, and the comment travels with the import it leads. Two runs, two files, and a comment that now sits beside an import it was never written next to.

That’s the non-idempotent version, and an idempotency check catches it. But the same mistake can happen differently: sometimes the misplaced comment also made the blank-line pass emit a blank line, and on the next parse that blank line was a real boundary between import groups:

the same input, first format — and every format after it:

import Zeta

{- k -}
import Alpha
import Mu

A blank line is the one thing that splits a run of imports, so on the next parse import Zeta is alone in its run and there is nothing left to sort. The output was now a fixed point. It had just silently declined to sort Zeta below the other two. No idempotency check can see that, because nothing changes. We finally caught it with a test that generates the same random module with its imports in the other order and demands byte-identical output: write those three imports as Alpha, Mu, Zeta to begin with and the formatter has nothing to move, so it prints them in that order — a different file from the same module.

Worth saying out loud: any formatter that rewrites tokens at all, sorting, removing redundant syntax, normalizing a keyword, has this problem, and its idempotency test gate does not cover the case of an idempotent but wrong format.

5. Matching elm-format without copying it

Gren is a fork of Elm, and elm-format is a mature, well-liked formatter. Where the two languages agree we wanted the two formatters to mostly agree, so that an Elm programmer feels at home. We could not simply reuse it: elm-format has its own parser, which is the thing we decided not to have. The elm formatter is written in Haskell, and the Gren formatter is written in, well, Gren itself.

What we did take is its output model. Our Box module is a port of elm-format’s Box.hs, including the detail that decided most of the indentation questions for us: its indent is a tab stop (advance to the next multiple of 4), not “add four”. That’s why a parenthesized when sits at (+2 after a + , (+5 after a |> , and (+4 when ( starts its line. None of those offsets is chosen; they fall out of “body at the next tab stop after the keyword” plus wherever the ( happened to land. We tried hard-coding one of them early on, confirmed it in one shape, and were wrong in the next.

Where we deliberately differ, every divergence is written down in the comparison catalogue, and every entry has a fixture in tests/testfiles/Divergence/ that a script keeps 1:1 with the document. The test suite is testing the documentation.

Elm-format is used as a comparison, not something we try to match completely. Our generated-syntax matrix diffs every cell against elm-format and gates against a reviewed baseline rather than assuming elm-format is right. Yes, the gren-format author reviewed differences and recorded “gren is right” or “elm is right” for each one. Or, “neither is right”, making us fix the formatter again.

That work turned up one place where elm-format’s own output is not idempotent: run it twice on a certain pipeline shape and you get two different files. We reported it as elm-format#842. Either side of a differential comparison can be the wrong side.

6. Testing a thing with no spec

A formatter has no specification beyond “the output should look right”, so the test problem is really “what properties can we check by machine, and what is left over for a human?”

The fixture suite checks three things per file: the output matches the expected file, the output re-parses to a semantically equal tree, and formatting the output again changes nothing (down to the position of every comment and blank line). About 400 fixture pairs, hand-written apart from the divergence ones.

The comment fuzzer takes each fixture and inserts a comment into every inter-token gap, one at a time, and checks the result formats to a fixed point. Then it does it with runs of two, then runs of two different kinds. That sounds like it should explode, so it’s worth saying why it doesn’t.

There are only three kinds of comment as far as layout is concerned: --, a one-row {- -}, and a multi-line {- -} spanning rows. The only question any rule ever asks about a comment’s kind is “can code follow this on the same line?”, and the answer is one newline check on the text. And every local rule in the placer reads at most one neighbour: the previous member’s last row, the previous member’s kind, its own text. Nothing looks two back, or forward. So a run of comments is a chain of boundaries, and there are exactly nine possible comment-to-comment boundaries (three kinds squared). If two comments sit next to each other, there are only nine combinations of comment types to worry about. Runs of three comments in a row (or N comments in a row) can also cover only those nine combinations. Once we fixed bugs related to 2 comments in a row, we ran runs of three across half a million gaps as a prediction, and found no new bugs.

The bugs no property test can see. We replayed 61 of our own old bug fixes against the full set of gates we have today: build the formatter from the commit just before the fix, run every current gate on the triggering input, see what fires. 37 were caught again and 3 would not reproduce. 21 were invisible to our test gates, and 16 of those 21 were layout bugs: output that parsed, meant the same thing, kept every comment, was idempotent, yet was wrong. There is nothing left for a property to check. The position barrier from section 3 doesn’t help either; it controls where a decision is made, not whether it’s right. For that class the only defense is an expected answer, meaning the test fixtures and the elm-format comparison.

A green gate on the wrong axis. For months every fuzzer swept the .formatted.gren half of the corpus, because those are known-good fixed points. But a formatted file has nothing left to sort, so the import-sorting bug in section 4 was unreachable from it. The first sweep of the .dirty.gren half found 24 findings in 66,252 probe sites, 22 of them that one bug. Before you trust a green gate, check what it varies, not whether it passed.

7. Bugs that aren’t ours

Sometimes the parser that feeds the formatter has bugs of its own. The one we hit most often: given

10 -
    3

the parser hands us this tree:

call  @1:1-2:6
    ├── fn: number  @1:1-1:3
    │   └── value: int  value=10
    └── args
        └── [0]: negate  @1:4-2:6
            └── expr: number  @2:5-2:6
                └── value: int  value=3

There is no subtraction node in it anywhere: this is a function call, 10 (-3), the number ten applied to the argument negative three. The parser decides “no space after the -, so this is a unary minus” by comparing columns, and here the 3 happens to start in the column right after the -, one row down. The production Gren compiler (the Haskell one) reads this as subtraction, and so does elm-format; we use the newer v2 parser, written in Gren, and it gets this wrong.

The formatter renders the tree it is given, so it never sees a subtraction here. With nothing else on the line it writes 10 -3, which the v2 parser and the production compiler both read as that same call, so every check passes and a subtraction the real compiler accepted has quietly become a call it rejects. Nothing on our side can see that. What we can see is the case where the author put a comment after the operator:

10 - -- c
    3

Now the tree says: call 10 with a negated 3, and the comment sits between the - and the 3. A negation is glued to its operand, so the faithful rendering of that tree lands the comment right after the minus sign:

10
    --- c
     3

The - has been swallowed into the --, and the expression means something else. A space would not help: negation must be glued to its operand (- 3 is a subtraction), and a -- runs to end of line — so that tree has no legal way to be written. The formatter’s own AST check notices that the output no longer re-parses to the same tree, and it refuses to write the file. That’s the decision, not an oversight: a wrong file is worse than an unformatted one.

The fuzzers hit this bug nineteen times. Rather than subtracting those from the count, the gates label them on sight ([known: compiler-common#35]) and register each one by name in a baseline file. An unregistered finding fails the gate, and so does a registered one that stops reproducing, so a real regression can’t hide among the known ones and a fix can’t leave a stale exemption behind. Before this the fuzzer just ran permanently red, and eight findings of a real bug sat among the upstream ones for weeks.

8. How fourteen other formatters cope

While designing the comment handling we read the source of fourteen other production formatters. The variable that matters turned out to be not the layout algorithm but what the parser hands the formatter:

what arrives who
comments are ordinary tree nodes topiary
named comment slots on AST nodes, no positions at all elm-format
comments as trivia hanging off tokens dart_style, google-java-format, swift-format, CSharpier, biome, Black
a comment-free AST plus a list of located comments gren-format, ormolu, ocamlformat, gofmt, prettier
nothing; comments re-read from the raw source between nodes rustfmt, zig fmt

The first three rows never have to work out where a comment goes; the front end already attached it. The last two have to reconstruct attachment from positions, which is our situation, and it’s where the survey’s stubborn instability bugs live. Crossing that with “does the tool have a position barrier” gives a table where gren-format is the lone exemplar of its category.

  has a position barrier no position barrier
attachment delivered by the front end all eight —
attachment must be reconstructed gren-format prettier, ocamlformat, ormolu, gofmt, rustfmt, zig

Four stories from the right-hand column and its neighbours:

And the counterweight: having a barrier doesn’t make a tool immune. Black and topiary both have one, both ship idempotency fixes anyway, and both run an idempotency check at runtime by default. What the barrier buys is keeping the bugs small enough to find.

9. Odds and ends

10. Three takeaways

  1. Reusing the compiler’s parser is worth it, and it means you will reconstruct comment placement from positions. Budget for that.
  2. Decide position-dependent things once, store the decision as a value, and delete the positions before the next stage sees them. Enforce it with a type, not a review. It doesn’t remove the obligation; it moves it to one function you can reason about.
  3. Idempotency is a property you engineer in, separately, and it has a blind spot: a wrong fixed point. If your formatter rewrites any tokens, you need a test that varies the input’s order too.
