Putting the comments back

How gren-format places comments when the parser it uses throws them away: what the problem is, what we built, what it does not cover, and what fourteen other formatters do about the same thing.

TL;DR. Comment placement is decided from source positions, and formatting invalidates them. We decide each placement once, as a role, and hand the renderer a tree with no positions on it, so a stale read is a compile error. That does not end the bugs; it confines them to the passes above the line, and every comment-placement decision to one classifier function, small enough to argue about in full. Of the fourteen formatters we surveyed, every other one that has to reconstruct comment attachment from source positions lacks that barrier, and that is where the survey’s instabilities that resist a local fix cluster: ocamlformat iterates, gofmt exempts. The barrier does not make a tool immune, and three tools that have it live with an instability too (§9.9); what it buys is keeping the bugs small enough to argue about.

Table of contents

1. Introduction

gren-format has no parser of its own. It uses the Gren compiler’s parser, which, like most compiler parsers, throws comments away. That is a choice: a formatter that shares the compiler’s parser can never drift from the language, and we would rather pay for comment placement than for a second parser (§2). So the formatter is handed a syntax tree with no comments in it, plus a separate list of the comments, each tagged with nothing but a (row, column) pair, and it has to work out where each one belongs and put it back. The difficulty is easy to state:

Placement is decided from source positions, and formatting invalidates the positions the placement was decided from.

Get that wrong and the output is not idempotent: run the formatter on a file it just formatted and the file changes again. Keeping every comment is easy and placing each beside the right code is harder, but neither gives idempotency; it has to be engineered in on its own (§3.3), and the need is not peculiar to author-driven layout, since formatters that refit to a page width have the same problem (§3.4).

Our answer is the position barrier: a line across the pipeline that source positions do not cross. Above the line, in the logical stage, code reads the author’s positions freely, and each comment’s placement is decided there, once, as one of seven roles. Below the line, in the stage that picks line breaks and writes bytes, positions are not off-limits but gone: the renderer works on a data structure with every position field removed, and the type checker, not review, enforces that (§5).

What crosses the barrier is a role, not a position. A role describes placement relative to the comment’s neighbours (TrailsPrevious: “glue onto the previous sibling’s last rendered line”), a direction the renderer can follow however the lines move. The classifier is written to one rule, a role must re-derive to itself: the comment renders at the position its placement was decided from, so the second run asks the same question of the same row (§4).

The barrier does not guarantee idempotency; it localizes the risk. With nothing below the line reading a position, two runs can disagree only if something above it answers differently the second time, chiefly the role classifier. Before the barrier that risk was spread over every layout rule; after it, the comment decision sits in one place, and §6 argues that the one place is right for a run of comments of any length and any mix of kinds.

What the barrier leaves behind is real, and we hit all of it. A role is not a row: gluing TrailsPrevious onto a line still needs to know that a line is there, which is render state and can be wrong (§5.3). Other passes above the line read positions too, and some of them move positions that were already decided from (§5.3). The formatter rewrites code as well as laying it out, and sorting an import list moves the code a comment was attached to (§7). And some bugs break no property at all: the output is stable, complete, and wrong, and no property gate can see it (§8).

§9 puts all of this beside fourteen other formatters. The barrier is neither our idea nor rare; what is new is having it while also reconstructing attachment from a list of positions, which no other tool that has to do that reconstruction does.

2. Five kinds of front end, and no parser of our own

Formatters are usually compared by their layout algorithm: whether they fit lines to a page width and how they pick where to break. For comments, that is not the variable that matters. What matters is what the front end hands the formatter, because that decides whether the formatter has to work out where a comment goes at all. We read the source of fourteen production formatters besides our own (§9). They sort into five levels, ordered by how much of the work the parser has already done.

level what arrives who
A0 comments are ordinary nodes of a concrete syntax tree; the formatter needs no comment concept at all topiary (over tree-sitter)
A1 named, typed comment slots on AST nodes, and no source positions anywhere elm-format
A2 trivia hanging off tokens dart_style, google-java-format, swift-format, CSharpier, biome, Black
A3 a comment-free AST, beside a flat source-ordered list of located comments gren-format, ormolu, ocamlformat, gofmt, prettier
A4 nothing; comments are recovered by re-reading the raw source between two nodes’ byte offsets rustfmt, zig fmt

Trivia is the compiler-writer’s word for the bytes between two tokens that the grammar does not care about: whitespace, newlines and comments. A trivia-carrying front end keeps them, hung off the token they sit beside and split into leading trivia (before the token) and trailing trivia (after it). In foo(1); // why, the comment is trailing trivia of the ;. It is a field of a token in the tree from the moment the lexer finishes, so no later stage has to work out where it belongs.

On A0 through A2 the comment is already attached to something before the formatter starts. The front end answered “which code is this comment beside?” while it was still looking at the input, and the answer travels with the tree. Placement is then a question about a tree the comment is already in, and the problem this document talks about does not arise. That does not make those tools immune to instability; every one of the five whose history we mined has shipped idempotency fixes anyway (§9.5). And the blind spot in §8 applies to every level equally.

On A3 and A4 the comments are not attached to the tree, so the attachment has to be reconstructed. The only evidence available is source positions, which are exactly the thing formatting destroys. Every instability story in §9 lives on these two levels.

A3 is not an exotic place to be. It is simply what a production compiler’s parser hands a formatter, and five of the fifteen tools surveyed are there.

gren-format is on A3 on purpose. It calls the Gren compiler’s in-development parser, the same front end that compiles the code being formatted. That buys one guarantee, and it is the reason for everything that follows: the formatter can never drift from the language. It accepts exactly what the compiler accepts, this release and every future one. A formatter with its own parse is a bug waiting to happen, and a language that is still moving would have a compiler whose development outruns a formatter’s independent parser.

The price is that a compiler’s parser discards comments, because a compiler does not need them. We pay it, because a formatter that cannot disagree with the compiler is worth more to us than easy comment placement. Had the compiler already carried trivia we would have taken that instead.

3. The problem, concretely

3.1 What the formatter is actually handed

Two things. The first is Src.Module: an ordinary AST with source ranges on its nodes and no ordinary comment anywhere. There is nowhere in the type for a -- or {- -} comment to be. (The one comment the parser does keep is a declaration’s doc comment, {-| … -}, because the compiler needs it for documentation; it arrives on the declaration it documents and never has to be placed.) The second is the parse Context, which carries a flat, source-ordered list of located comments:

type Comment
    = Line String     -- `-- like this`, the text after the `--`
    | Block String    -- `{- like this -}`, the text between the delimiters

-- the context carries: Builder (Located Comment)
-- where `Located` is a start (row, col) and an end (row, col).

For this module:

module S exposing (sizes)


sizes =
    [ 1 -- one
    , 2
    ]

the formatter receives an AST for sizes = [1, 2]. Drawn as a tree, with each node’s source range as @row:col-row:col, it is:

module  name='S'  @1:8-1:9, effects='none'
    ├── exports
    │   └── [0]: lower  name='sizes'  @1:20-1:25
    └── values
        └── [0]  @4:1-7:6
            └── value  name='sizes'  @4:1-4:6
                └── body: array  @5:5-7:6
                    └── items
                        ├── [0]: number  @5:7-5:8
                        │   └── value: int  value=1
                        └── [1]: number  @6:7-6:8
                            └── value: int  value=2

There we see the array lives from row 5 to row 7. Separately, the Context has this:

{ "comments": [ { "type": "line", "value": " one",
                  "start": { "row": 5, "col": 9 },
                  "end":   { "row": 5, "col": 15 } } ] }

The comment lives on row 5. The comment does not know it is inside an array. The array does not know a comment exists. The only thing connecting them is a (row, column) pair across two data structures.

3.2 Reattachment versus formatting

That is a reattachment problem, and reattachment interacts badly with the one thing a formatter does – change source code positions. Here is an example of an old bug that was fixed. The author wrote a line comment trailing a two-token body:

you wrote:              format¹ produced:        format² produces:

v =                     v =                      v =
    foo bar -- c            foo bar                  foo bar
                            -- c                 -- c

The first format read the comment’s position, the body’s last row, and decided “trails the body”. But the code that turns “trails” into output could not find the row to glue onto for a body of more than one token (a mistake since fixed), so it dropped the comment to a line of its own at the body’s indent. The second format read that file. The comment is now on the row after the declaration’s last row, and the rule for a comment there is different: it is seen as detached from the body, so it goes to column 1. Same rules, same comment, a different row, a different answer. The file settles there after two formats instead of one.

A large share of the comment bugs this project has fixed are a variation on this, and in the replay of §8 it is the class the property gates see most of.

3.3 Three properties, gated separately

Preserving comments and placing them correctly, by themselves, do not provide idempotency; that needs a separate guarantee — that placement decided from the output of the formatter equals placement decided from the input to the formatter, and it has to be engineered in.

  1. Preservation. Every input comment appears exactly once in the output, text and kind unchanged. (Continuation rows of a multi-line block comment are re-indented; that is layout, not text.)
  2. Faithful placement. The comment lands beside the code the author wrote it beside. This is specified as C1–C7: the first two rules decide which code a comment attaches to, the other five decide how it is laid out. Attachment is settled first; layout works with whatever it is given.
  3. Idempotency. format(format(x)) = format(x), byte for byte.

Preserving the comment in the output is a very low bar for a formatter. It does not give you faithful placement of the comment, which is why 1 and 2 are separate. The Black formatter preserves every comment (they ride in a leaf’s whitespace prefix) and still says this in the docstring of the function that has to place them:

“The sad consequence for us though is that comments don’t ‘belong’ anywhere. … We simply don’t know what the correct parent should be.”

With a trivia-preserving front end, properties 1 and 2 come nearly free. Property 3 is where the architectures part ways. With trivia, a comment’s slot in the tree is stable across formatting because it was never derived from layout in the first place. In gren-format it is derived from layout, and layout is again the output:

run¹   placement¹ = place(code, positions)            -- the author's positions
       output¹    = layout(code, placement¹)

run²   placement² = place(code, positionsOf(output¹)) -- no longer the author's
       output²    = layout(code, placement²)

Idempotency is output² = output¹, and it follows as soon as placement² = placement¹, that is, as soon as place gives the same answer about the formatter’s own positions as it gave about the author’s. Nothing in the picture makes those two agree by construction. Something has to, and for us it is one rule on the classifier: a role must re-derive to itself (§4), where a role is how that comment rides in the code, relative to its neighbors.

Every comment is placed so that the position its placement was decided from is the position it renders at. Run 2 then asks the same question of the same position and gets the same answer.

Note what is held fixed in the equation: code is the same in both runs. §7 is about what happens when it is not.

3.4 Is author-driven layout the culprit?

gren-format has no page width. Whether a construct renders on one line or several is decided from whether the author wrote it on one line or several (and for a few constructs the multi-line form is mandatory). There is no search for the prettiest arrangement and no re-fitting to a column limit.

It is natural to wonder whether that is what causes the problem in §3.2, and whether formatters that recompute layout from scratch to fit a page width escape it. The survey in §9 says no. prettier is exactly that kind of formatter and has had the problem for nine years. gofmt has no page-width fitter at all and is not stable either. The variable is whether placement reads source positions, not whether layout is author-driven.

What author-driven layout does do is make the author’s positions more tempting to read. The (row, column) data are right there, and they are usually correct. That is why the ban in §5 has to be mechanical rather than advisory.

3.5 The pipeline

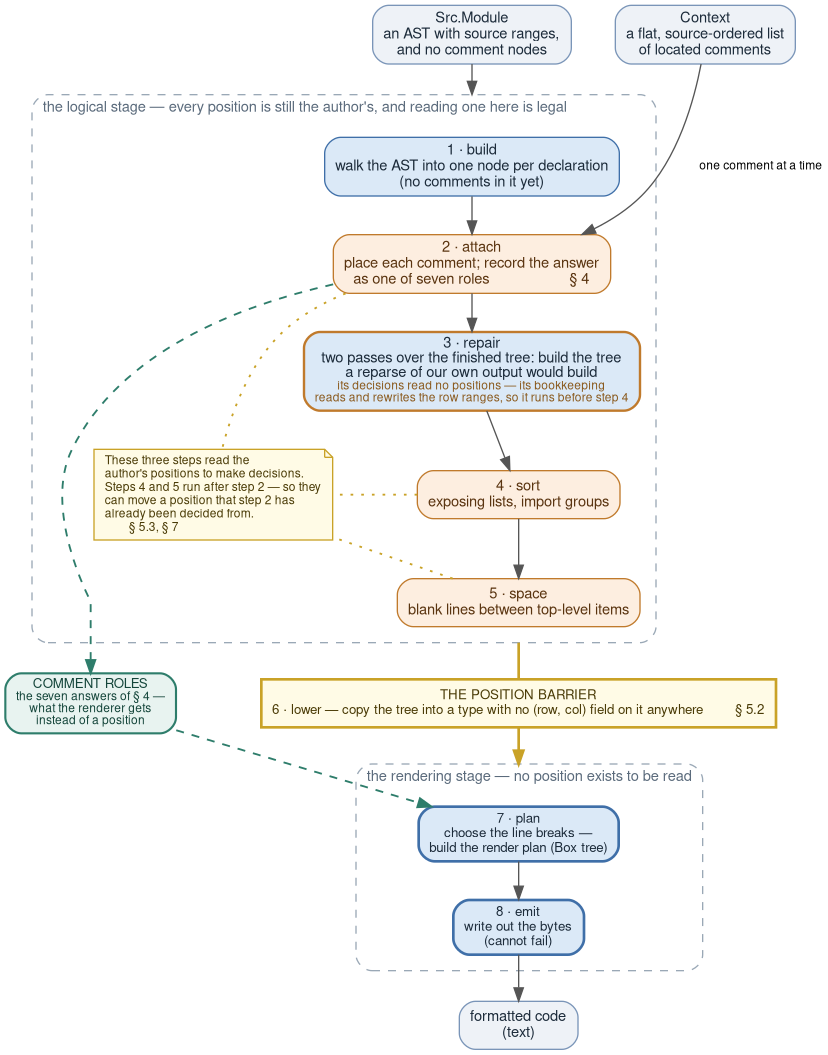

Here is the pipeline, with the position barrier dividing it.

The eight pipeline steps, and where the position barrier falls

Step 2 is where every placement decision is made; §4 argues for making all of them there, once, rather than at each point of use. Step 6 is the barrier; §5 describes it.

Steps 4 and 5 are shaded like step 2 because they are the same kind of step: all three read the author’s positions. The difference is that 4 and 5 run after the placement decision, still on the legal side of the line, and nothing stops them from moving a position that step 2 already decided from. Two sections of this document are about that: §5.3, where the barrier turns out not to cover those gaps, and §7, where sorting moves the code a comment was attached to.

Step 3 is blue with an orange border because it is half of each. Its decisions come from a comment’s role and its own text, never from a (row, column) position. But the bookkeeping that records those decisions reads and rewrites the row ranges that later steps go on to read, and that fixes its place in the order. Step 4 renumbers rows when it moves an import; step 3 writes a range derived from the numbering step 4 has not yet changed.

4. Decide once — the role, not the position

Every comment’s placement is decided exactly once, in the logical stage, while every position in the tree is still the author’s original position. For most of this project’s life it was the other way round: the attachment of a comment was re-derived at each point of use, in at least eight separate places, at render time. The answer is now stored on the comment leaf as a CommentRole:

type CommentRole
    = TrailsPrevious   -- glue onto the previous sibling's last rendered line
    | LeadsLine        -- own line, at the current flow/body indent
    | LeadsNext        -- belongs to the sibling AFTER an unrecorded separator
    | TrailsHead       -- glue onto the container's head (a record update's base)
    | RidesInline      -- rides mid-line without breaking it (`f {- k -} x`)
    | LeadsInline      -- glued to the FRONT of a declaration (`{- c -} import Qux`)
    | Standalone       -- a detached top-level comment, its own column-1 node

One of those needs a word of explanation. Almost none of the punctuation in a Gren file survives parsing as a node with a position: =, :, ,, |, -> and keywords like then and in are all gone by the time the formatter sees the tree. Only binary operators and brackets keep a recorded position. Those missing tokens are what we call unrecorded separators, and they are a problem for comments, because x {- c -} = y and x = {- c -} y arrive as the same three facts: where x ends, where the comment is, where y starts. The formatter cannot tell the two spellings apart, and it must not look at whitespace width (formatting must not depend on your spacing). So one of them has to move. The rule is that the comment lands after the separator, and LeadsNext is that rule recorded as a role.

The role is what the renderer gets instead of a position. A (row, column) pair says where the comment was, in a file that is about to be laid out again. The role says how it fits: which neighbor it belongs to, and how it attaches. Every decision that used to compare the comment’s position against another node’s now reads one of these seven values instead. The renderer reads the stored answer and never recomputes it.

Here is one Gren module that exercises all seven. The role column is the formatter’s own --lpt output for this file, not a hand annotation:

module Ex exposing (a, b)

{- c -} import Qux

import Dict {- inline -} as D

a rec =
    { rec -- about the base
        | alpha = 1
    }

b =
    let
        base =
            -- start here
            1
    in
    [ base -- the seed
    , 2, {- two -} 3
    ]

-- detached below b
comment role
{- c -} before import Qux LeadsInline
{- inline -} in import Dict … as D RidesInline
-- about the base TrailsHead
-- start here LeadsLine
-- the seed TrailsPrevious
{- two -} LeadsNext
-- detached below b Standalone

Each comment’s role is decided by answering, in order:

All four are answered while the positions are still the author’s, and none is revisited. The full procedure is in commentAlgorithm.md §4.

Every role has to survive being re-derived from the formatter’s own output. That is the one rule the classifier is written to satisfy:

A role must re-derive to itself: the position a comment’s placement is decided from is the position that comment renders at.

If the classifier says “this comment trails the item before it” because the author wrote it on that item’s last row, then the comment must come out on that item’s last row. The second run asks the same question of the same row, gets the same answer, and nothing moves.

When the output does not honour the role, the rule is not the thing to change. §3.2’s example is the plain case: “trails the body” was the right answer, and the fix went to the code that failed to put the comment on the body’s row. Sometimes the role genuinely cannot render at the row it was decided from. A multi-line block comment trailing a declaration’s last row:

you wrote:              format¹ produced:        format² produces:

v =                     v =                      v =
    fn a b {- c             fn a b                   fn a b
   second -}                {- c                 {- c
                               second -}            second -}

is decided from that row, but the renderer gives a comment that spans rows a line of its own, so it comes out below the declaration, and a reparse reads a comment below a declaration as detached. The rule is already right about where the author put it; the trouble is that the output puts it somewhere else. The fix is to make the first format build the tree the second format would build. The comment is going to end up below the declaration, so the first pass puts it there itself, at column 1, which is what a reparse would produce. Two passes do this once the last comment is in, over the whole tree, because a comment’s neighbours are not known until then. They run at the tail of the comment pass itself, before sorting or vertical spacing touches anything (commentAlgorithm.md §4.6).

Every comment gets a role; there is no “don’t know”. That totality is what makes the argument in §6 possible. Because the answer is always exactly one of seven values, a file with n comments carries n independent labels, not a combined state that depends on how the comments sit relative to one another. The alternative is what most people expect a comment placer to look like inside: a case analysis over configurations, a space that grows with the number of comments in one place and always has a corner nobody enumerated. There is no such space here.

Deciding once is not the unusual part, incidentally. Ten of the fifteen tools surveyed in §9 do it, with role sets of two to nine members. What differs is what the classifier is allowed to read, and what the downstream stages may do with its answer.

5. The position barrier, and how to make it a type

5.1 The rule

No code in the rendering stage may read a source row or position to make a layout or comment-placement decision.

This splits the questions the formatter asks into two groups. Above the barrier, in the logical stage, where every position in the tree is still the author’s:

question what it reads
which declaration owns this comment, how deep in its subtree, in which gap between siblings, and with which role (§4) the comment’s (row, col) against each node’s cached range
did the author write this construct across rows? (the forceVertical flag on a call, an if condition, a record literal) the node’s own first and last row
did the author write this node on the same row as the item before it? both nodes’ rows
did the author break this signature at a ->, or spread this union’s variants over several lines? the children’s rows
does this node cover any source row at all, or was it synthesized? whether the node has a range
how many blank lines go between two top-level items, and where does one import group end and the next begin? the last row of one subtree against the first row of the next

Below the barrier, in the rendering stage, where no position exists to read:

question what it reads
where does this comment go? the CommentRole stored on the comment leaf
is this construct vertical? isSingleLine, applied to a Box that has already been built
can code follow this comment on the same line? the comment’s own text (the three kinds in §6.2)
any of the author-intent questions above a boolean that lower computed at the barrier: the answer, never the evidence behind it
is there a line here to glue onto? what the renderer has emitted so far (§5.3)

The second list is everything the renderer is allowed to ask – its roles and attributes, not source positions. That does include “where does this comment go?”, which sounds like a question about source position. It’s not. It’s “where”, relative to its neighbors. TrailsPrevious says glue onto the previous sibling’s last rendered line, TrailsHead says onto the container’s head, LeadsNext says the sibling after an unrecorded separator. Those are directions a renderer can follow without source positions.

The author-intent row of questions in the table is important. The questions that genuinely need the author’s rows still get answered. The renderer is just handed the answer instead of the (row, column) evidence, so it cannot re-derive the answer later against different rows.

5.2 Enforcement via a type

The barrier is enforced by the type checker, not by documentation and not by a linter.

The rendering stage does not consume the logical printing tree at all. It consumes RenderNode, a mirror of the node type with the seven cached position fields removed, reachable only through a lower function that drops them. RenderShape strips the Located payloads off eight shape constructors as well, so there is no position anywhere in the renderer’s view of the tree.

A handful of render-side decisions genuinely needed the author’s rows: the fourth entry in the second table above. lower computes them once, at the barrier, as four booleans:

RenderShape is total over the logical shape type, so adding a new shape does not compile until the lowering maps it.

The previous version of this barrier was a script, and we deleted it. It ran first in the test suite and grepped the rendering stage for a list of position-accessor names. It worked, and it was a barrier only until someone wrote the accessor a different way, or until the list of another module’s names went stale, silently, which it did. It was a weak way of enforcing the position barrier.

“Be careful not to read positions here” is a comment in a file nobody reads. “It does not compile” is a property of the system.

The cost is a second tree structure during formatting. We measured it rather than asserting it, and found it acceptable: renderTreeMemory.md, which also explains why peak RSS is the wrong instrument.

5.3 What the barrier does not cover

Two gaps, both of which have produced real bugs here. Neither was a reason not to build the barrier. Both were reasons not to believe that the barrier alone was enough.

On the renderer’s side of the barrier, a role is not a row. Turning a role into output still needs a fact no role can carry: is there a line here to glue onto? We had a bug where that was not true! A TrailsPrevious comment glues onto the previous item’s last line, but whether that sibling ended on a line this comment may join is a fact about what the renderer has just emitted. That is legitimately below the barrier, answered from render state rather than positions, and perfectly possible to get wrong.

On the logical side of the barrier, different stages of the pipeline can modify positions. Above the barrier, reading source positions is legal and necessary. But they stop being the author’s part-way through the logical stage. Steps 4 and 5 in §3.5 can each move a position that step 2 decided from. A decision keyed to such a position is stale for the same reason a render-side read is stale, and the barrier does not touch it, because every step involved sits above the line. We hit this bug when sorting import statements.

This is a bug of the kind that catches many formatters: a pass that runs before the printer and reasons from rows the pipeline goes on to change. swift-format’s version (§9.6) read the input’s rows in a pre-printer pass that the printer then invalidated; ours read rows that a later logical pass moved. It caught us because of how we had worded the rule. The criterion in §4 is stated for roles. Steps 4 and 5 are position-keyed decisions that produce no role. The vertical-space pass decided whether a comment was free-floating by looking at the gap below it, and then closed that very gap itself when it pulled a definition up under its signature. The first format saw a gap and emitted two blank lines; the second saw none and emitted one. Read properly, the rule was never about roles:

Every position-keyed decision in the logical stage must be decided from a position that this pipeline does not itself change.

5.4 What the barrier is actually for

It does not prove idempotency. It localizes the mechanism.

With no positions read downstream, the only things that can differ between run 1 and run 2 are the decisions the logical stage makes from positions: the role-classifier’s answer for every comment, and the short list of author-intent reads in §5.1’s first table. So “is formatting idempotent?” stops being a question about the whole pipeline and becomes a question about that list, and for comments about a single function, one that always returns an answer, and always one of seven. That is what makes the coverage argument in §6 possible at all. Without it, the obligation is spread over every layout rule that reads a position: 19 of prettier’s 73 print modules, 14 source reads in ocamlformat’s printer. Section 9 shows the bugs that happen there.

Localizing the mechanism is not enough, and §9.5 is the counterweight: every barrier-holding tool whose history we mined has shipped idempotency fixes anyway. However, what is left after the barrier is small enough to argue about and get correct.

6. Why forty comments in a row is not forty cases

The first question anyone asks about a comment placer is “what happens if I write forty comments in a row?”. Luckily, to keep us from going mad while testing, that is the wrong question. This section is the coverage argument: the reason every run of comments, of any length and any mix of kinds, is handled by rules that were written for one. §5.4 and §9.5 refer back to it by that name.

The claim:

For any n ≥ 0 comments of any kinds in one place, the algorithm assigns exactly one placement to each; and a run of n reaches no decision that a run of two does not.

It rests on three properties of the implementation, plus one boundary it does not cover (§7). The full version, with the code sites for each, is commentAlgorithm.md §8.

6.1 Placement is prefix-determined, so n is never an input

The attachment fold walks the comments in source order, and when comment k is placed, comments k+1 … n are not in the tree yet. So

role(k) = f(code, comments 1 … k−1)

and f is the same function for every k. No branch anywhere in the attachment module asks how many comments a gap holds, because at the moment the question is asked the answer is not knowable. n enters the algorithm in exactly one way: as the number of times f is applied.

That is why “does it handle a run of 40?” is not a question about runs. It is the same question as “does it handle the 40th comment in the file”, and the fold does not distinguish the two. Add the classifier’s totality from §4 and the tree after n comments carries the same kind of state it carried after one.

6.2 The formatter tracks three kinds of comment

The language has two comment syntaxes to place (the doc comment of §3.1 never needs placing), but every layout question about a comment’s kind is answered by one test on the comment’s own text, whether it contains a newline, which distinguishes three shapes (the 3rd one is multi-line):

  can code follow it on the same line?
-- like this no
{- like this -} on one row yes
{- like this ⏎ and this -} no

Nothing else about a comment (its length, its content, its original indentation) is read by any placement decision. The one other read is layout, not placement: a multi-row block comment’s continuation rows are re-indented relative to where its opening {- was, the re-indentation §3.3 sets aside. “Any variety of comments” is not an unbounded axis. It is three kinds.

This is the design decision we would defend hardest: every kind-sensitive question asks that one thing of the text and nothing else. The test is written out at eight sites across five modules, three of them named predicates in NodeClassify, and every one is the same newline check, so the number of kinds is a fact we can state outright… it’s three.

6.3 Every local rule reads at most one neighbour

This is the most important of the three properties. Everywhere the members of a run interact locally, the rule reads one neighbour and no more:

rule what it reads
“what row is in front of me?” (asked at four sites when placing a comment) the previous member’s last row
the fold that lays a flow’s items out left to right a six-state summary of the line in front of the next item
the scan that finds where a trailing run starts spilling below its declaration the previous member’s kind
“can this comment ride on a line of code?” the member’s own text

Not one looks two members back, or forward. So a run of comments is a chain of boundaries, the junctions between one thing and the next, and every rule in the table is a function of exactly one boundary. A run of three comments, A, B and C, written between two pieces of code has four of them:

   code │ comment A │ comment B │ comment C │ code
        ↑           ↑           ↑           ↑
     code→A        A→B         B→C       C→code

Two of those four are comment-to-comment boundaries, and with three kinds of comment there are exactly nine of those possible. A run of any size is built from the same nine types of comment-to-comment pairs.

The formatter never enumerates those nine; each rule sees one side of one boundary. They are the number a test has to reach: a probe that has put every ordered pair of kinds side by side has exercised every boundary the rules can tell apart, which is what --run 2 and --mix-pairs together do (§6.5).

6.4 Where one neighbor is not enough

Three rules genuinely cannot be decided from one neighbour, because they are about the run as a whole. Each is written as a quantifier over the run, never as a case analysis over its length:

rule the quantifier
may the run cross an unrecorded separator? ∀ members: could this one cross?
may a one-line construct stay on one line with this run inside it? ∀ members: can this one sit mid-line?
who owns the run when detaching, sorting, or spacing? the run is the unit

A ∀ over a set is still length-independent: folding a predicate over an array does not care how many elements it has. Nor does it contradict §6.1: each of these reads the run as it stands in the tree when it is asked, and the decisions that need the whole run are re-taken over the finished tree once the last comment is in (§4’s tail passes), so the fold itself still never asks about length. The two boolean rules are also monotone. Adding a member can only turn the answer off, never on, so they can only make a comment stay where it was written, never move one that was not already moving.

Every one of those three was written per-member first, and every one was found as a bug. The per-member version is the natural thing to write, it is correct for a run of one, and a corpus of hand-written fixtures will not contain the mixed run that breaks it. §9.7 shows two other projects learning the same thing independently.

6.5 What it looks like

Six comments, three kinds:

v =
    fn a {- 1 -} {- 2
                    over two rows -} {- 3 -} {- 4
                                                again -} {- 5 -} -- 6

The roles, again from the formatter’s own --lpt output:

comment kind role
{- 1 -} one-row block LeadsLine
{- 2 … -} multi-row block TrailsPrevious
{- 3 -} one-row block RidesInline
{- 4 … -} multi-row block TrailsPrevious
{- 5 -} one-row block RidesInline
-- 6 line TrailsPrevious

Member 1 is the odd one. It sits in the gap after the call’s last argument, where the classifier found no row to glue onto and answered LeadsLine; but a one-row block comment renders inline whatever its role, so the role there records the missing glue row, not a fresh line.

One caveat. The premise, that no rule reads more than one neighbour except the three that quantify over the whole run, is a property that has to be maintained. Nothing enforces it. A fourth all-or-nothing rule discovered tomorrow gets added to the table in §6.4 and the reasoning carries on. So the run sweeps do not prove the argument; they test its premise, and we ran them as a prediction. Probes that insert a run of two comments, or of two different kinds, into every inter-token gap found real bugs: 20 findings in one family, and 1,752 findings (1,718 of them formatter-side) in three bugs. Runs of three and mixed triples, which §6.3 says reach no new boundary, found nothing formatter-side in 533,709 gaps.

7. The anchor can move out under you

This lesson came last and cost the most. It is also described in commentAlgorithm.md §8.7.

7.1 Code is an input too

Everything in §6 quantifies over the run, holding the tree fixed. Look again at

role(k) = f(code, comments 1 … k−1)

§6 shows that f is length-independent in its second argument. But code is an argument too, so we must worry about both code and comments, requiring:

(i) given the same code, f returns the same roles when re-asked over the output’s positions; and (ii) the second run is given the same code.

(ii) holds exactly as far as formatting does not rewrite the concrete syntax. Ours does, in three ways that delete, insert or reorder a token: it sorts exposing lists and import groups, it strips redundant parentheses from patterns, and it adds or drops the port keyword on a module header (and a fourth on request: --remove-unused-imports deletes whole imports).

Any formatter that rewrites tokens at all — sorts imports, removes redundant syntax, normalizes a keyword — carries obligation (ii), and an idempotency gate does not protect against all of it: the class has members that are fixed points.

7.2 The bug we hit

A comment’s anchor is the code its placement was decided against. Requirement (ii) fails when the formatter moves that code out from under the decision. Ours did, for a comment written inside an import statement:

import {- k0
    tango -} Qux0 exposing (..)
import Bar3

That comment’s range overlaps the import’s, and there is nowhere inside an import node for it to live, so attachment promotes it to a sibling and the first pass prints it on a row of its own. When we sorted the imports, we messed up, and the formatter saw the comment as a different role as a result. Same number of comments, but roles came out different because we changed the code incorrectly.

That is the oscillating face of the class, and it was fixed as one. Our comment-gap sweeps could have found it, but there we made a mistake too: they all ran over the already-formatted half of the corpus, not the dirty corpus, and a .formatted.gren has nothing left to sort. Once we realized that mistake, running the test over the 391 unformatted halves of the corpus at the time, 66,252 probe sites, found 24 findings on the first sweep, 22 of them this class. --corpus both is now the default (testing.md).

The class has a second face, and it is the one the boxed rule above is about. When the same misread row range also makes the vertical-space pass emit a blank line, that blank becomes a real run boundary on the next parse and the wrong grouping is self-consistent: a fixed point that has silently declined to sort two adjacent imports. No idempotency gate can see that member, and none of ours did. It outlived two fixes and was finally caught by the random-module fuzzer’s author-order oracle, which emits the same module with its import run in the other order and requires byte-identical output (commentAlgorithm.md §8.7).

8. What the barrier does not reach

This section is a survey of the bugs this project has fixed, not evidence for or against the position barrier. What it settles is scope: which of our bugs are of the kind §§4–6 are about at all, and how much of the bug history lies outside their reach. So we counted.

The question is whether the test gates we have today can see each bug the project has fixed. Not the gates that existed when the bug was found: most of the portfolio was built after most of the bugs, so that history says only which gate came first. Instead we replayed old bugs against the current gates, one bug at a time:

If a gate fails at the parent and passes at the fix, that gate can see the bug; call the bug witnessed. If no gate fails at the parent, the bug was invisible to the entire portfolio: it shipped, and nothing we own today would have said a word about it.

One limit on what that measures. It is per input, not per sweep: it says a gate would fail on the triggering input, not that the gate’s own probe would ever have generated that input, so “witnessed” means the gate can see the bug, not that it would have found it unprompted.

Not every commit can be used. Of 135 fix commits, 57 predate a shift in how the formatter and library were built together, 12 turned out on inspection not to be bug fixes, and 5 no longer build. That leaves 61. Of those, 37 were witnessed, 21 were invisible, and 3 would not reproduce. An invisible one means the output was wrong and also AST-equivalent, its own idempotent formatting, every comment preserved, the end-to-end check exiting 0.

class witnessed invisible not reproduced
oscillation · crash · wrong-attachment · performance 33 0 2
layout 0 16 1
mixed · dropped-content · blank-lines · literal-corruption 4 5 0

Row one: the gates see every bug of the kind the barrier is about. The barrier exists to prevent oscillation and wrong attachment, a comment placed from a position that formatting then invalidated (§3.2). There were 21 of those, and a gate caught every one. The row also holds the 8 crashes and 4 performance bugs, which --show catches for the ordinary reason that the formatter died or hung. So on this row the gates are complete, though one of the 21 needed a gate we built late: the fixed-point member of §7’s anchor class, which only the author-order oracle could see.

That does not say the barrier worked. A replay asks whether a gate fires on a bug that was written; it cannot ask whether an architecture kept a bug from being written. The dates are the only evidence on that, and they are mixed: 13 of the 21 were fixed after deciding-once landed on 2026-07-19, most within four days of it as the random-module fuzzer swept out bugs that were already there, but three of them weeks later, in the passes above the line (§5.3) and at the anchor (§7). The type-enforced barrier of §5.2 is newer than this study, so nothing here tests it. §5.4 claims the barrier confines what remains to one function; it never claimed a lower count.

Row two: no gate can see a layout bug, and it is the biggest single class in the replay. Sixteen layout bugs ran and every one was invisible (a seventeenth would not reproduce). A layout bug breaks no property: the output parses, means the same thing, keeps every comment, is its own fixed point, and is wrong. There is nothing left for a property gate to check. The barrier is no help either. It controls where a placement decision is made, not whether the decision is right, and a role decided once and re-derived identically forever can still be the wrong role.

The dividing line is not comments versus code. It is where a thing goes versus how it looks once it is there. Everything this essay argues about, the roles, the barrier, the coverage argument of §6, is on the where side, and so is every gate that fired. The how side has no architectural defence and no invariant to check. What catches a bug there is an expected answer or a second implementation: for us, the 396 fixture pairs (hand-written, apart from the ones that pin the divergence catalogue), and the elm-format comparison of §9.5.

9. What fourteen other formatters do

We read the source of fourteen production formatters. All counts and repository states below are as of 2026-08-23, the date of the pull, except where a later date is given; counts of source sites (prettier’s print modules, ocamlformat’s Source.* reads, swift-format’s rules) are our own greps of that checkout. Beyond the input level from §2, three axes separate them: when placement is decided; whether layout is width-aware or author-driven; and, the axis that is almost never named, whether there is a position barrier of the kind §5 builds.

The barrier is not implied by deciding comment attachment once. A tool can decide attachment exactly once and still let every layout rule re-derive verticality from the author’s rows. It is also a stronger bar than “the fitter is positionless”, since several tools reach their fitter through a tree walk that is itself full of layout choices, and it is that walk the barrier has to cover.

formatter comments arrive as placement decided layout position barrier?
topiary A0 CST nodes never asked; author-row facts resolved to atoms once author-driven yes
elm-format A1 named slots at parse time author-driven yes (no positions exist)
dart_style A2 token trivia once, front end → 4 roles 80-col cost solver yes (positionless Piece IR)
swift-format A2 token trivia at token-stream build, lexically → 4×2 100-col Oppen yes (printer reads only output rows)
google-java-format A2 token trivia at lex time, lexically 100-col greedy Doc partial: Doc sees none, op-builder reads 2
CSharpier A2 Roslyn trivia while walking trivia → 2×2 100-col Doc yes
biome A2 rowan trivia once, pre-pass → 3×3 80-col Doc yes
Black A2 prefix strings once, list_comments → 2 roles 88-col yes (comments become typed leaves)
gren-format A3 located list once, logical stage → 7 roles author-driven yes, type-enforced
prettier A3 located list once, attach.js → 3×3 80-col Doc no: 19/73 printers read the source
ocamlformat A3 located list once, Cmts.init → 3 roles 80-col Format boxes no: 14 Source.* reads in the printer
ormolu A3 located list at print time, span compares author-driven no
gofmt A3 located list at print time, row/col compares author-driven no
rustfmt A4 missing spans at print time, byte spans 100-col no
zig fmt A4 raw source scan at print time, byte offsets author-driven no

Grouped by whether comments arrive attached to the tree, the table collapses to this:

  has position barrier no position barrier
A0–A2: attachment delivered by the front end all eight (google-java-format: partial) —
A3–A4: attachment must be reconstructed gren-format, alone prettier, ocamlformat, ormolu, gofmt, rustfmt, zig

Every tool that has to reconstruct attachment lacks the barrier, except ours. Those six are where the survey’s instabilities that no one has found a local fix for cluster (§9.3, §9.4, §9.8). §9.5 and §9.9 are the counterweight: having the barrier does not make a tool immune, and three barrier-holders decline fixes too; what it does is keep the bugs local.

The top row invites an inference that does not hold, that a front end which delivers attached comments delivers the barrier with them. Attachment is a fact about the input; the barrier is a prohibition on a stage, and most of the questions in §5.1 are not about comments at all. A trivia concrete syntax tree (CST) still carries a position on every token. So seven of those eight built the barrier themselves, each in an IR that drops positions. Only elm-format is simply handed it, and only because level A1 has no position information for comments.

The position barrier is neither our idea (swift-format wrote it down in 2020) nor rare (nine of fifteen have it, counting ours). What is new is having it while also reattaching comments to the tree.

9.1 Deciding attachment once is the norm

Ten of the fifteen classify each comment exactly once, before printing, into a small finite role set: Black’s two, ocamlformat’s three, dart_style’s four, elm-format’s five slots, our seven, swift-format’s four kinds crossed with a boolean, prettier’s and biome’s 3×3. So the premise of §6.1 is not something anyone needs to defend; it is what production formatters already do. What differs is what the classifier may read and what happens downstream. Two of the tools that decide once still oscillate, prettier and ocamlformat, and they are exactly the two whose layout stage reads positions.

9.2 biome and CSharpier are the nearest thing to a controlled experiment

biome and CSharpier are both ports of prettier. Each keeps prettier’s algorithm, its role model and its width-fitting Doc printer, and changes the input (along with the language and the tree type, which a rewrite cannot help changing). prettier is handed a comment-free AST plus a list of located comments, and has to work out where each one goes. biome is handed a rowan CST, a lossless tree in which every comment is already trivia on a token; CSharpier is handed the same kind of tree from Roslyn, the .NET compiler. Their authors wanted prettier in Rust and prettier for C#.

In both ports the positional reads on the comment path vanish, because attachment arrives with the tree. Where prettier reads options.originalText at node offsets to decide whether a comment is on its own line, biome counts piece.is_newline() over the token’s trivia pieces to answer the identical question, and the barrier appears without anyone having set out to design one. Neither port is spotless (biome’s row in §9.5 carries a comment-related idempotency fix, at an embedded-language boundary), and a rewrite changes more than one thing, so this is suggestive rather than controlled. Held that loosely, it still points at the variable:

prettier’s instability does not look like a property of its algorithm, its role model, or its fitter, all of which the ports kept. It looks like a property of a front end that hands it comments unattached, so that it has to rebuild the attachment from positions.

That also says exactly what a formatter like ours is up against. Our front end hands us the same thing prettier’s does, and we cannot change that, because reusing the compiler’s parser is the whole point. So the barrier has to be built.

9.3 ocamlformat ships an iteration instead of an argument

ocamlformat decides once, and its printer still reads Source.begins_line and Source.empty_line_between. So Translation_unit.ml does not format the file; it formats it repeatedly, under a comment reading (* iterate until formatting stabilizes *), bounded by a user-facing --max-iters, default 10, after which it emits BUG: formatting did not stabilize after %i iterations.

A mature, widely used formatter’s shipped answer to §3.2 is: run it up to ten times and report a bug if it still moves. The bug class is real, and nobody has solved it.

9.4 gofmt has the strongest corpus gate in the survey, and an exemption inside it

gofmt’s printer has no fitter at all; layout is as author-driven as it gets. But writeCommentPrefix decides same-line-versus-own-line from pos.Line == p.last.Line, blank lines from pos.Line - p.last.Line, and, for a comment before a case label, which block the comment belongs to from pos.Column == next.Column, all inside the emission loop. A maintainer’s diagnosis on the resulting issue states §3.2 in one sentence:

“When the next token is on the same line as the comment, this appends a space character instead of \t. However, the next token is not necessarily on the same line after formatting.”

cmd/gofmt/long_test.go re-formats every .go file under GOROOT and asserts idempotency. It works: it caught the bug on a file in Go’s own tree. But the bug is architectural, not local, and what has shipped since 2018 is an exemption inside the gate, a strings.HasSuffix(filename, "issue22662.go") branch that logs “known gofmt idempotency bug” and returns. golang/go#24472 is open, labelled NeedsInvestigation, more than eight years old (opened March 2018), and the exempted file still fails when replayed on go1.25.1. So does golang/go#73958 (2025), whose second pass invents a bare // line. Separately, go/printer’s own fixture suite opts out per file, because idempotency “is very difficult to achieve in general”.

The corpus test gate is not the missing piece. gofmt has a bigger one than we do. What it does not have is an architecture in which the answer cannot go stale. So the gate finds the instance, the instance resists fixing, and the file gets an exemption.

9.5 The barrier is necessary and demonstrably not sufficient

Mining the full histories of the five barrier-holding tools we cloned turns up idempotency fixes in all five (swift-format’s one is a feature removal rather than a repair), two of them within six weeks of the survey date:

tool idempotency fixes comment-related latest idempotency gate
topiary 8 (OCaml ×6, Nickel ×2) 0 2026-07-20 runtime, default on
Black 9 3 2026-07-21 runtime, default on
biome 4 (all embedded-language) 1 2026-04-10 none
CSharpier 2, user-reported 0 2024 none
swift-format 1, a feature removal 1 (the removal itself) 2020-01-30 fixtures

Topiary’s two 2026 fixes are §3.2 in someone else’s words (“the type ascription collapsed onto one line, which flipped the body’s indentation between runs”) and they show where the obligation went: topiary’s engine cannot have the bug, so it lives in the per-language query files instead, and has for four years. Black’s is better documented: omitting optional parentheses “re-parents the comment onto a different leaf after the next parse”, which changes the split on a second pass, in a tool that runs assert_stable on every format. That is the shape of §7: the classifier answered differently because its anchor moved, not because anything re-read a position. Biome’s four are all at composition boundaries, where one barriered formatter’s output becomes another’s input.

Read that table together with §5.4. Four of the five have the barrier but nothing like §6, no argument that what the barrier leaves behind is correct, and all four still ship the bug; two, topiary and Black, compensate with a runtime check.

elm-format reaches the same conclusion from the opposite end. The tools above built a barrier and still have the bug. elm-format never needed to build one: it sits on level A1, with named comment slots and no source positions anywhere for a layout rule to misread, and it ships §3.2’s mechanism anyway. For a pipeline whose last step forces a multi-line block, it produces two different outputs for semantically identical code, differing only in how the author happened to break the source lines. Its AST records that the author broke the lines, a layout rule keys on the record, and the output breaks them differently, so the second run reads a different record. Taking the positions away did not take away the class, because positions are only one way to read the input’s line structure. We found it because every generated cell is diffed against elm-format and gated against a reviewed baseline rather than treating elm-format as an oracle. We reported it as elm-format#842. Running elm-format again on the first output yields the second, which the divergence alone had not shown: the first output is not a fixed point. Either side of a differential comparison can be the wrong one, and once it was.

9.6 swift-format is the control condition

Each stage of swift-format’s story is a stage of this document’s argument, which is why it gets a section of its own.

BlankLineBetweenMembers (2019-07-10) put at least one blank line between the members of a type. It is a phase-1 rule, meaning it rewrites the syntax tree before the Oppen printer runs, and it decided whether to insert that blank line by comparing the start and end line numbers of the input. That is §3.2’s mechanism, in a tool that otherwise holds the barrier cleanly, and the one place it was broken is where we broke it too (§5.3): not in the printer, but in a pass that runs before it and reasons about what the printer will do. It was patched twice in 2019, eight days apart, both times as a comment bug rather than as non-idempotency. Then the class was named, and the rule was deleted. The commit of 2020-01-30 removes 149 lines of rule and 365 of tests:

“The rule is unfortunately based on the trivia before the pretty printing pass, which means it decides single-line-ness based on the input which may be incorrect. The single-line-ness must be based on the source after pretty printing, so it cannot be accomplished in a phase 1 rule.”

That is the rule in §5.1, reached independently, six years earlier. Two days later “Delete some dead code” removes the isSingleLine accessor too, which is the stronger decision: it makes the question unaskable rather than merely unasked, the remedy of §5.2 arrived at by review instead of by a type. The break-based reimplementation the commit proposed still does not exist; the feature was traded for the invariant and the trade was never revisited. The principle held, though. Of swift-format’s 44 rules, exactly three mention sourceLocationConverter today, all three to build a diagnostic’s location. Six years, no regression, no allowlist, no exemption file.

So swift-format is not a counterexample; it is the control condition. The principle is discoverable without the architecture (they found it), finding it does not by itself yield the feature (they lost it), and holding it by review is expensive. What enforcement buys is affordability. Formatter.RenderTree deletes the field rather than the feature, so our analogue of that rule, the vertical-space pass, can exist, because the fact it needs is computed once at the barrier and does not go stale. swift-format had to choose between the rule and the invariant. The point of making the barrier a type is not having to choose.

§7’s anchor, in someone else’s tracker. We ran swift-format 6.3.3 on its three rules that rewrite tokens, and two of them are this essay’s later sections in miniature.

OrderedImports is §7. It decides that a comment belongs to the import directly below it, then sorts that import away. A file header above the first import travels with it into the middle of the block, and the result is a fixed point, so no idempotency check can see it. This was reported as swift-format #772 (2024-07-18) and closed as working as intended: a comment about the import below is indistinguishable from a licence header, so the author must say which it is, with a blank line. We came to the same answer, for the same reason: a blank line is the only run boundary our import handling has either. A second project reaching §7’s anchor and resolving it the same way is better evidence for §7 than a bug would have been.

NoCasesWithOnlyFallthrough is §4. When it merges a fallthrough-only case into the case below, a comment can be in one of three places. Above the absorbed case, the merge is suppressed. Above the surviving case, the comment is kept but now reads as a note about the wrong case. Trailing the absorbed case on the same line, the comment is deleted: the rule’s guards start by dropping everything up to the next newline, which is exactly where that comment lives. That is what deciding attachment per site instead of once per comment looks like: a place nobody enumerated has no answer, and no answer renders as nothing. We filed swift-format #1274 (2026-08-25), open as of writing.

9.7 Runs, independently corroborated

Four of the surveyed tools model runs of comments explicitly, and two others have shipped run bugs. dart_style’s CommentSequence is documented as n comments and n+1 newline counts, which is §6.3’s boundary counting arrived at independently. ocamlformat groups adjacent comments and decides the group as a unit. gofmt passes prev *ast.Comment, “the previous comment in a group”: exactly one neighbour, §6.3’s rule. Black’s list_comments is §6.3 in its most reduced form: only the first line of a prefix can be a trailing comment; every later one is standalone.

And the bugs. Ormolu’s 0.1.0.0 changelog fixes five comment-idempotence bugs in a single release, two of them run bugs in the project’s own words: comments “picked up as ‘continuation’ of a series of comments” (#449) and “different indentation levels in a comment series” (#512). rustfmt #7019, “Non-idempotency in consecutive block comment”, was filed 2026-08-10, in a formatter with a 400-file idempotency gate. That is §6.4’s warning, that a corpus of hand-written fixtures will not contain the mixed run that breaks a per-member rule, coming true twice in other projects.

9.8 The two trackers, read against each other

rustfmt is in the same position we are. It reuses the production Rust compiler’s parser, whose AST carries no ordinary comments, and recovers them from “missing” source snippets: the raw text between the last emitted byte position and the next node’s span. Its A-comments label carried 447 issues, 147 open; 89 titles report a comment being removed, deleted, eaten or lost, 29 still open, the oldest from 2019. Twelve titles report non-idempotency, and three report a comment migrating between owners across an import reordering (#5485, #6241, #3127), which is §7’s class, whose fixed-point members only an author-order oracle can see. Two things are interesting. The arrival rate rather than the backlog is the signal: roughly forty comment issues a year for eleven consecutive years, with no downward trend in the per-year counts, in a mature and near-universally deployed formatter. And rustfmt is not missing an idempotency gate. It re-formats every file in tests/target and asserts no change, with a floor of 400 files, exactly the gate our fixture suite provides. What it does not have is a probe that inserts a comment into every inter-token gap, or one that varies runs by length and composition.

Historically, prettier does a good job of not dropping comments. Of course, prettier must attach each comment, and it does so from source positions, deciding ownLine / endOfLine / remaining from the author’s line structure. Structurally that is §4’s role assignment, decided once, before printing. It oscillates anyway, because prettier reflows: the line structure of the output is not the line structure the classifier read. Its area:idempotency label carried 109 issues, 54 open, and 47 carried both area:comments and area:idempotency; the oldest open comment-instability issues date from April 2017. By contrast only 16 prettier titles named comment loss.

The contrast is sharper than either tracker alone:

A discarding parser puts preservation at risk: rustfmt loses comments in volume, for years. Keeping the comment does not buy idempotency, because attachment is still decided from positions that printing invalidates: prettier loses almost nothing and oscillates constantly.

The instability class is caused by positional attachment, not from the parser discarding comments. Discarding merely forces positional attachment in the formatter.

9.9 The exempt-rather-than-fix reflex is general

Beside gofmt’s filename exemption: Black keeps an expected-failure fixture set “with the unstable formattings” and ships --unstable as a release channel; swift-format deletes the rule; ocamlformat iterates ten times; topiary reserves an exit code. Five projects, five ways of declining a fix, each an implicit judgment that the class is architectural rather than local.

Runtime idempotency checking is itself a recognized pattern; four of the fourteen ship one. ormolu offers --check-idempotence; ocamlformat iterates; topiary checks by default; Black checks by default in --safe mode, alongside an AST equivalence check, and its source names the failure mode precisely:

“We shouldn’t call format_str() here, because that formats the string twice and may hide a bug where we bounce back and forth between two versions.”

Two of those four, topiary and Black, have the barrier and check anyway.

10. Summary

The problem is one sentence: placement is decided from source positions, and formatting invalidates them. We are there by choice, because reusing the compiler’s parser is worth more to us than a parser that keeps comments (§2).

Our answer is three moves. Decide once, while the positions are still the author’s, into one of seven roles, each of which must re-derive to itself from the formatter’s own output (§4). Enforce it with a type, by handing the render stage a tree with no positions on it at all (§5). Cover what remains: the obligation now lands above the line, for comments on one function, and §6 argues that the function is right for a run of any size.

The barrier localizes the problem without ending it. Passes above the line can move a position that was already decided from (§5.3); sorting can move the code a comment was attached to, leaving a fixed point no idempotency gate can see (§7); and layout bugs, the largest class in the replay of our history, are on a side of the line the barrier does not touch (§8).

Nine of the fifteen tools surveyed have the barrier; what is new is having it while also reconstructing attachment from a located list (§9). The tools that must reconstruct and lack it are where the instabilities that resist a local fix cluster (§9.3, §9.4), two ports of prettier locate the class in positional attachment rather than in a discarding parser (§9.2), and the tools that have the barrier ship fixes anyway (§9.5), one of them by deleting a feature to keep the principle (§9.6).

Decide once, behind an enforced barrier generalizes to any pass whose output destroys the evidence its decisions were made from: record the decision as a value, and make re-deriving it a compile error. A barrier protects one pass, not a pipeline of them, and it relocates the obligation rather than removing it. Where the obligation lands is the whole question, and ours lands on a function small enough that §6 can be an argument about all of it.

This site is open source. Improve this page.
